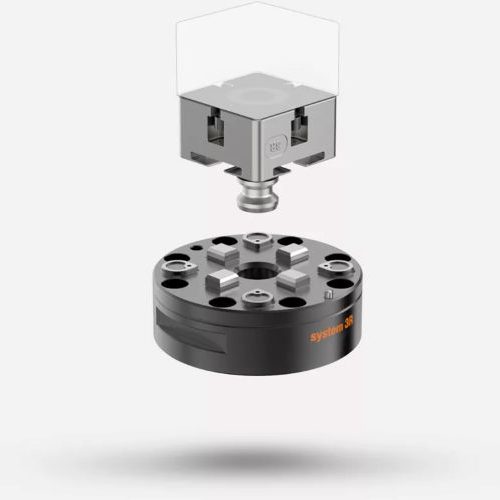

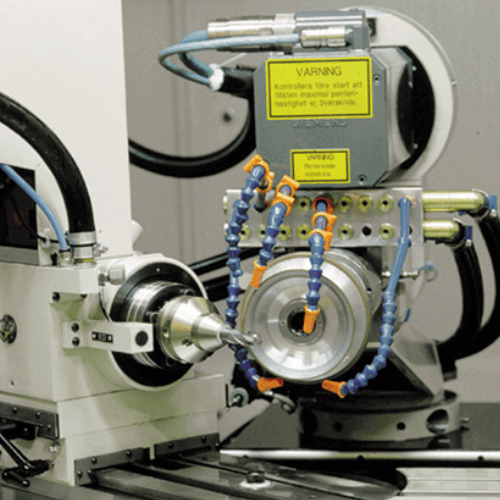

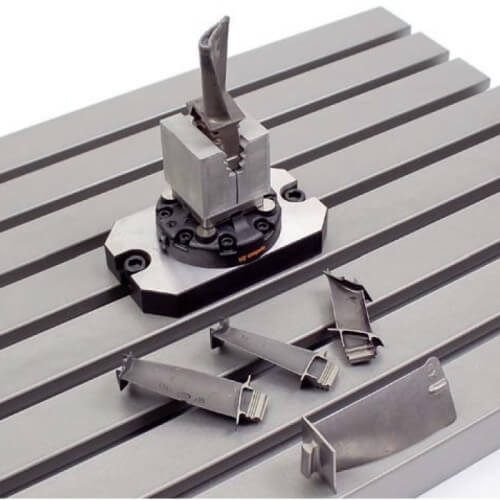

Macro HP & Standard

Macro HP & standaard referentie systeem voor high-mix-low-volume en kleine series

3R-600.20 MacroHP manuel chuck

Required drawbar 3R-605.1 or 3R-605.4
Fixed index positions 4×90°
Tightening torque 4 Nm
Carbide reference
Weight 3.6 Kg

3R-600.22 MacroStd manuel lathe chuck

With setting screws for centring
Required drawbar 3R-605.2
Tightening torque 6 Nm
Fixed index positions 4×90°
Weight 2.1 Kg

3R-600.23-S MacroStd manuel chuck

Tightening torque 6 Nm
Required drawbar 3R-605.2
Fixed index positions 4×90°
Flushing connection
Weight 0.7 Kg

3R-600.24-S MacroStd manuel table chuck

Manuel chuck for mounting on the table or spindle
Required drawbar 3R-605.2
Fixed index positions 4×90°
Flushing connection
Weight 0.7 kg

3R-600.28-S MacroStd manual chuck, low profile

Required drawbar 3R-605.2RS
Fixed index positions 4×90°
Grinded front edge
Rust resistant
Weight 1 Kg

3R-600.24RS MacroStd manual chuck

Required drawbar 3R-605.2RS
Clamping force 6000N
Fixed index positions 4×90°
Rust resistant
Weight 0.7 Kg

3R-600.24-V MacroStd manual VDP table chuck

Required drawbar 3R-605.2
Tightening torque 6 Nm
Building-in height 85 mm
Centre spacing 63 to 100 mm
Weight 6 Kg

3R-600.1-30 MacroStd pneumatic chuck

Permanent mounting machine spindle or the machine table
Required drawbar 3R-605.1
Fixed index positions 4×90°
Turbo locking
Weight 4 Kg

3R-600.10-3 MacroHP Pneumatic chuck

Required drawbar 3R-605.1 or 3R-605.4
Required air pressure 6±1 bar, turbo
Fixed index positions 4×90°
Air-blast cleaning of the Z-references
Weight 4.4 Kg

3R-600.10-30 MacroStd pneumatic table chuck

Required drawbar 3R-605.1 or 3R-605.4
Required air pressure 6±1 bar, turbo
Fixed index positions 4×90°
Air-blast cleaning of the Z-references
Weight 4.4 Kg

3R-600.10-31 MacroStd pneumatic chuck

Automatic chuck with airgun connection
Fixed index positions 4×90°
Required drawbar 3R-605.1 or 3R-605.4
Air-blast cleaning of the Z-references
Weight 4.4 Kg

3R-600.14-30 MacroStd pneumatic chuck, low profile

Pneumatic chuck for permanent mounting on the table
Required drawbar 3|R-605.2
Required air pressure 6±1 bar
Fixed index positions 4×90°
Weight 0.8 Kg

3R-600.15-3 MacroStd pneumatic chuck, RS

Drawbar 3R-605.2RS included
Required air pressure 6±1 bar
Fixed index positions 4×90°
Rust resistant
Weight 0.8 Kg

3R-600.86-1 MacroStd pneumatic, machine-adapted chuck

Required drawbar 3R-605.1
Required air pressure 6±1 bar
Air-blast cleaning of the Z-references
Flushing connection
Weight 2.2 Kg

3R-600.86-3 MacroHP pneumatic chuck

Required drawbar 3R-605.1
Required air pressure 6±1 bar
Air-blast cleaning of the Z-references
Turbo locking
Weight 4 Kg

3R-602.81 MacroStd pneumatic table chuck, low profile

Pneumatic chuck for mounting on the table
Required air pressure 6±1 bar
Fixed index positions 4×90°
Required drawbar 3R-605.1
Weight 1 Kg

3R-600.84-30 MacroStd pneumatic, machine-adapted chuck

Four M6 clearance holes Ø 45 mm
Required drawbar 3R-605.1
Required air pressure 6±1 bar
Turbo locking
Weight 2.7 kg

3R-600.84-31 MacroStd pneumatic

Four M6 clearance holes Ø 45 mm
Required drawbar 3R-605.1
Required air pressure 6±1 bar
Turbo locking
Weight 2.7 kg

3R-600.84-3 MacroHP pneumatic chuck

Required drawbar 3R-605.1
Required air pressure 6±1 bar
Fixed index positions 4×90°
Turbo locking
Weight 4 Kg

3R-602.81RS MacroStd pneumatic table chuck

Pneumatic chuck for mounting on the table
Required air pressure 6±1 bar with turbo locking
Fixed index positions 4×90°
Required drawbar 3R-605.10
Weight 1 Kg

3R-610.21 MacoStd manuel table chuck

Manuel Three ground faces for vertical/horizontal
Required drawbar 3R-605.2
Fixed index positions 4×90°
Flushing duct
Weight 2.2 Kg

3R-610.21-S MacroStd pneumatic table chuck

Pneumatic chuck with integral air unit horizontal/vertical
Tightening torque 6 Nm
Fixed index positions 4×90°
Required drawbar 3R-605.2
Weight 3.5 Kg

3R-610.46-30 MacroStd pneumatic table chuck

Pneumatic chuck with integral air unit horizontal/vertical
Required air pressure 6±1 bar
Fixed index positions 4×90°
Required drawbar 3R-605.1 or 3R-605.4
Weight 4.4 Kg

3R-SP24460 MacroStd pneumatic chuck

Pneumatic chuck for build-in, in a fixture or B-axis
Required air pressure 6±1 bar
Fixed index positions 4×90°
Air-blast cleaning of Z-references
Weight 1.8 Kg

3R-SP26771-RS MacroHP pneumatic chuck

Pneumatic chuck with integral air unit horizontal/vertical
Tightening torque 6 Nm
Fixed index positions 4×90°
Required drawbar 3R-605.2
Weight 3.5 Kg

3R-SP29828 MacroHP Pre-set chuck

For pre-set station outside machine
Embraces drawbar 3R-605.1 and 3R-605-2
Manual lock
Able to mix Macro and Macro Magnum pallets
Weight … Kg

3R-651.7E-P Macro pallet 54×54 hardened

Hardened cast-iron pallet
For automatic changing
Flatness 0.002 mm
Set off 8 pieces
Weight 0.2 kg

3R-651.7E-XS Macro pallet 54×54

Hardened pallet for workpieces
For automatic changing
Flatness 0.002 mm
Set off 8 piece
Weight 0.2 kg

3R-651.75E-P Macro pallet round 75mm

For automatic changing
With holes for 4 fixing screws
Rust-resistant
Set off 8 pieces
Weight 0.4 kg

3R-651.3 MacroHP pallet 52×52 mm

3Refix Ø10 mm
Adapted for automatic changing
Ready for code carrier
Flushing duct
Weight 0.5 kg

3R-601.1E-P MacroHP pallet 70×70 mm

Adapted for automatic changing
Ready for code carrier
Rust-resistant
Supplied in sets of 5
Weight per set 3.2 kg

3R-659.16-P Macro collet holder ER-16

For collets ER-16
Workpiece size 0.5-10 mm
Flushing duct
Building-in height 62 mm
Weight 0.8 kg

3R-659.20-P Macro collet holder ER-20

For collets ER-20
Workpiece size 1-13 mm
Flushing duct
Building-in height 69 mm
Weight 1.2 kg

3R-659.16-P Macro collet holder ER-32

For collets ER-32
Workpiece size 2-20 mm
Flushing duct
Building-in height 94 mm
Weight 1.2 kg

3R-466.10033 Macro-MacroJunior Manual chuck adapter

Axial locking screw with channel for flushing through electrode
Adapted for automatic changing
Height 100 mm
Fixed index positions 3×120°
Weight 0.8 Kg

3R-651.70-P Macro pallet

Unhardened pallet
including reference element 3r-651.7-P
Adapted for automatic changing
Ready for code carrier
Weight 1 kg

3R-651E-P Macro pallet 54×54 hardened

For automatic changing
With holes for 4 fixing screws
Rust-resistant
Set off 8 pieces
Weight 0.4 kg

3R-601.116-75PA Pallet Ø116 mm

Mounted on pallet 3r -651.75-P
For automatic changing
Ready for code carrier
Set off 1 piece
Weight 1.8 kg

3R-601.52 Macro pallet Ø116 mm RS

For automatic changing
With 3Refix Ø10 mm
Rust-resistant
Adapted for automatic change
Weight 1.9 kg

3R-601.7E-P Macro pallet 70×70 mm hardened

Hardened cast-iron pallet
For automatic changing
Fixed index positions 4×90°
Set off 5 pieces
Weight 3 kg
