Matrix referentie systeem voor high-mix-low-volume en kleine series

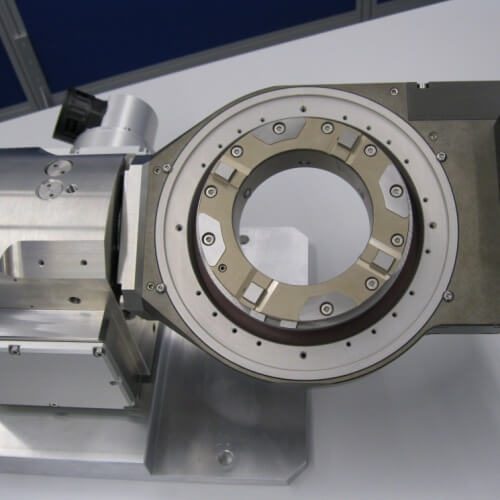

s3r_matrix 4-as-tiny

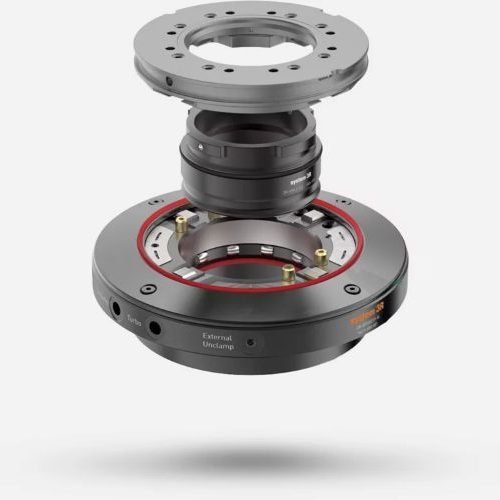

s3r matrix

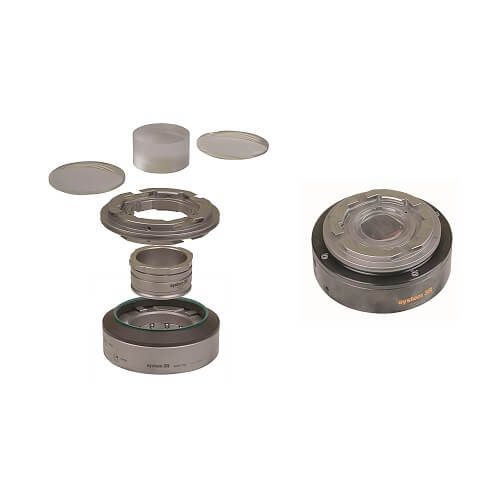

matrix montage-tiny
3R-690.1-110

3R-690.1-110 Automatic pneumatic table chuck, Matrix 110

  • Fixed index positions 4×90°
  • Clamping force 9000 N
  • Permissible torque 120 Nm
  • Required drawbar 3R-695.2-110
  • Required air pressure, 6±1 bar
  • Weight 2.5 kg
Bekijk tekening
3R-690.1-142

3R-690.1-142 Automatic pneumatic table chuck, Matrix 142

  • Fixed index positions 4×90°
  • Clamping force 12000 N
  • Permissible torque 570 Nm
  • Required drawbar 3R-695.2-142
  • Required air pressure, 6±1 bar
  • Weight 7 kg
Bekijk tekening
3R-690.1-142

3R-690.1-185 Automatic pneumatic table chuck, Matrix 185

  • Fixed index positions 4×90°
  • Clamping force 16000 N
  • Permissible torque 570 Nm
  • Required drawbar 3R-695.2-185
  • Required air pressure, 6±1 bar
  • Weight 9 kg
Bekijk tekening
3R-690.1-220

3R-690.1-220 Automatic pneumatic table chuck, Matrix 220

  • Fixed index positions 4×90°
  • Clamping force 18500 N
  • Permissible torque 570 Nm
  • Required drawbar 3R-695.2-220
  • Required air pressure, 6±1 bar
  • Weight 11 kg
Bekijk tekening
3R-690.1-260

3R-690.1-260 Automatic pneumatic table chuck, Matrix 260

  • Fixed index positions 4×90°
  • Clamping force 24000 N
  • Permissible torque 570 Nm
  • Required drawbar 3R-695.2-260
  • Required air pressure, 6±1 bar
  • Weight 11 kg
Bekijk tekening
3R-691.1-110

3R-691.1-110 Pallet matrix 110mm

  • Fixed index positions 4×90°
  • Permissible press load 35 Ton
  • Permissible torque 570 Nm
  • Required drawbar 3R-695.2-110
  • .
  • Weight 0.5 kg
3R-695.2-110

3R-695.2-110 Drawbar 110mm

  • Adapted for automatic change
  • Gripper interface is in the pallet
  • .
  • .
  • Weight 0.3 kg
3R-691.1-142

3R-691.1-142 Pallet matrix 142mm

  • Fixed index positions 4×90°
  • Permissible press load 80 Ton
  • Permissible torque 570 Nm
  • Required drawbar 3R-695.2-142
  • Weight 0.5 kg
3R-695.2-142

3R-695.2-142 Drawbar 142mm

  • Adapted for automatic change
  • Gripper interface is in the pallet
  • .
  • .
  • Weight 0.5 kg
3R-691.1-185

3R-691.1-185 Pallet matrix 185mm

  • Fixed index positions 4×90°
  • Permissible press load 130 Ton
  • Permissible torque 570 Nm
  • Required drawbar 3R-695.2-185
  • Weight 1.7 kg
3R-695.2-185

3R-695.2-185 Drawbar 185mm

  • Adapted for automatic change
  • Gripper interface is in the pallet
  • .
  • .
  • Weight 0.8 kg
3R-691.1-220

3R-691.1-220 Pallet matrix 220mm

  • Fixed index positions 4×90°
  • Permissible press load 160 Ton
  • Permissible torque 570 Nm
  • Required drawbar 3R-695.2-220
  • Weight 2.6 kg
3R-695.2-220

3R-695.2-220 Drawbar 220mm

  • Adapted for automatic change
  • Gripper interface is in the pallet
  • .
  • .
  • Weight 1.3 kg
3R-691.1-260

3R-691.1-260 Pallet matrix 260mm

  • Fixed index positions 4×90°
  • Permissible press load 210 Ton
  • Permissible torque 570 Nm
  • Required drawbar 3R-695.2-260
  • Weight 3.2 kg
3R-695.2-260

3R-695.2-260 Drawbar 260mm

  • Adapted for automatic change
  • Gripper interface is in the pallet
  • .
  • .
  • Weight 1.5 kg
3R-696.1-110

3R-696.1-xxx Pallet matrix xxx mm

  • For setting flatness and angular positions
  • Ground hole for centering
  • Adapted for automatic changing
  • Measuring length 80 mm
  • Weight 3.2 kg
Brochure Matrix
