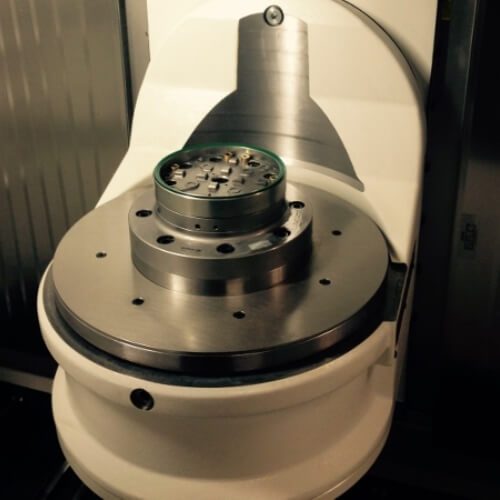

Macro-magnum referentie systeem voor high-mix-low-volume en kleine series

s3r_magnum machine2-tiny
s3r macro-magnum-1
3R-90793-tiny
3R-680.10-2

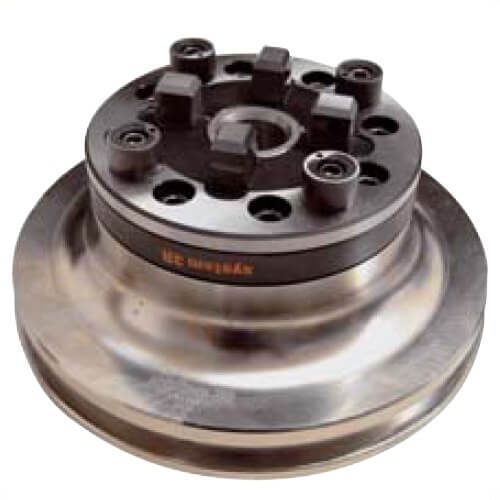

3R-680.10-2 Automatic pneumatic table chuck

  • Required air pressure 6±1 bar
  • Fixed index positions 4×90°
  • Required drawbar 3R-605.1
  • Air-blast cleaning of the Z-references
  • Turbo-locking of MacroMagnum pallets
  • Weight 12 kg
Bekijk Tekening
3R-680.1-2

3R-680.1-2 Automatic pneumatic spindle chuck

  • Required air pressure 6±1 bar
  • Fixed index positions 4×90°
  • Required drawbar 3R-605.1
  • Air-blast cleaning of the Z-references
  • Turbo-locking
  • Weight 9 kg
Bekijk tekening
3R-680.19-2 (1)

3R-680.19-2 Automatic pneumatic table chuck with 3Refix holes Ø20.

  • Required air pressure 6±1 bar
  • Fixed index positions 4×90°
  • Required drawbar 3R-605.1
  • Air-blast cleaning of the Z-references
  • Turbo-locking of MacroMagnum pallets
  • Weight 12 kg
Bekijk tekening
3R-90809.03

3R-90809.03 Automatic pneumatic table chuck built-in for fixtures or B-axis

  • Required air pressure 6±1 bar
  • Fixed index positions 4×90°
  • Required drawbar 3R-605.1
  • Air-blast cleaning of the Z-references
  • Turbo-locking of MacroMagnum pallets
  • Weight 5 kg
3R-680.24-S

3R-680.24-S Manual chuck for spindle or machine table

  • Very low building height
  • Fixed index positions 4×90°
  • Required drawbar 3R-605.2
  • .
  • .
  • Weight 5 kg
Bekijk tekening
3R-SP29828

3R-SP29828 Macro Magnum voor-instelbare chuck

  • Om vooraf in te stellen buiten de machine
  • Geschikt voor korte trekstang 3R-605.2 en lange 3R-605.1
  • Manuele vergrendeling
  • In staat om Macro en Macro Magnum pallets te klemmen
  • Kip moment: 150 Nm
  • Max. torsiekracht: 250 Nm
  • Gewicht … Kg
3R-681.71

3R-681.71 Reference element Ø142mm

  • For mounting on a workpiece/fixture before it is locked in a chuck.
  • Rust-resistant
  • .
  • .
  • .
  • Weight 1 kg
Bekijk tekening
3R-681.51

3R-681.51 Pallet Ø142mm

  • Hardened pallet with threads and clearance holes for screws
  • 3Refix Ø10mm
  • Ready for automation
  • Rust-resistant
  • .
  • Weight 5 kg
Bekijk tekening
3R-681.51-SA

3R-681.51-SA Unhardened pallet Ø156mm

  • Pallet with hardened references and hole markings
  • For automatic changing
  • Ready for code carrier
  • .
  • .
  • Weight 1 kg
Bekijk tekening
3R-681.51 (1)

3R-681.51-A Pallet Ø156mm

  • Unhardened pallet with hardened references (3R-681.71)
  • For automatic changing
  • Ready for code carrier
  • .
  • .
  • Weight 4,5 kg
Bekijk tekening
3R-DE681-2424-M6A

3R-681-2424-M6A Pallet 240x240mm

  • Anodized aluminium pallets with M6 threads
  • mounted on 3R-681.51
  • For automatic changing
  • Ready for code carrier
  • .
  • Weight 11 kg
Bekijk tekening
3R-DE681-2424-T8A

3R-681-2424-T8A Pallet 240x240mm

  • Anodized aluminium pallets with T-slots
  • mounted on 3R-681.51
  • For automatic changing
  • Ready for code carrier
  • .
  • Weight 11 kg
Bekijk tekening
ID_Tooling-tiny

3R-15496-00, Sealing for macro-magnum

  • Sealing ring for Macro-Magnum type 3R-680.1x-1
  • 3R-680.1x-1HD
  • 3R-680.19-1
  • .
  • .
  • .
ID_Tooling-tiny

3R-22173-00, Sealing for macro-magnum

  • Sealing ring for Macro-Magnum type 3R-680.1x-2
  • 3R-680.1-2
  • .
  • .
  • .
  • .
3R-SSP090-macro-magnum-680.1x-3-tiny

3R-SSP090, macro-magnum spare part kit

3R-SSP090 Spare Part Kit. Ready Kit for MacroMagnum chucks with suffix “-3”:

  • 3R-680.1-3,
  • 3R-680.1-3V,
  • 3R-680.10-3,
  • 3R-SP26712
3R-SSP091-macro-magnum-680.1x-2-tiny

3R-SSP091, macro-magnum spare part kit

3R-SSP091 Spare Part Kit. Ready Kit for MacroMagnum chucks with suffix “-2”:

  • 3R-680.1-2
  • 3R-680.10-2
  • 3R-680.19-2
